This single-layer folding PP storage cabinet can be laid flat when empty to reduce warehouse footprint and shipping volume for cross-border shipments.
It features dual access openings, tool-free assembly and lockable swivel casters, suitable for household storage and cross-border retail.
Product Technical Specifications
|
Specification Category |
Detailed Parameter Description |
|
Product Name |
Single-Layer Folding PP Storage Cabinet |
|
Product Model |
KANSOLZ-SC01 (Customizable) |
|
Unfolded Dimensions |
60 × 29.5 × 34 cm |
|
Folded Dimensions |
60 × 29.5 × 10 cm |
|
Net Weight |
Approx. 2.8 kg / unit |
|
Gross Weight |
3.2 kg / unit |
|
Static Load Capacity |
Max. 20 kg with evenly distributed load |
|
Main Materials |
Virgin PP (Main Panels) + HIPS (Doors/Frames) + TPR (Caster Treads) |
|
Caster Diameter |
50 mm |
|
Panel Thickness |
3 mm thick virgin PP panel |
|
Access Configuration |
Top Opening Lid + Front Double Doors |
|
Mobility Features |
4 swivel casters with integrated locking brakes |
|
Assembly Method |
Integrated folding structure, tool-free setup |
|
Stackable Feature |
Vertical modular stacking available |
|
Maximum Safe Stacking Height |
Up to 4 layers |
|
Standard Colors |
Off-white, translucent grey; custom Pantone colors available |
|
Packing Method |
Individually packed in export flat carton |
|
Outer Carton Size |
62 × 31.5 × 12 cm |
|
Quantity per Carton |
1 pc / carton |
|
20GP Loading Qty |
920 pcs |
|
40HQ Loading Qty |
Approx. 2200 pcs |
Structural Design
Dual-Access Precision Closing Structure: Dual openings support bulk sorting and display operations. Fixed-point snap locks ensure consistent closing gaps across batches, preventing unintended opening during sea freight stacking and stabilizing arrival condition.

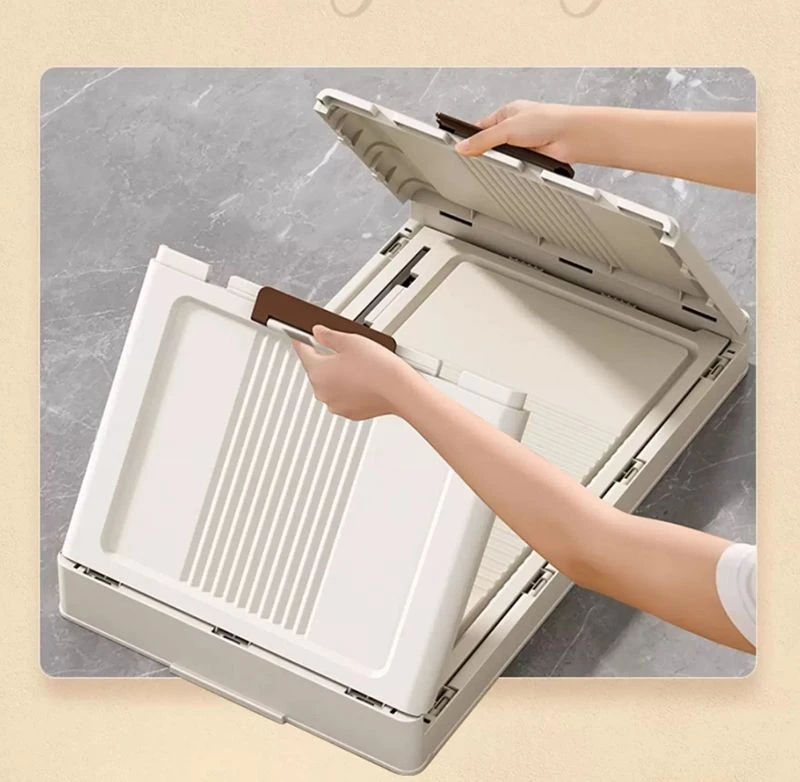

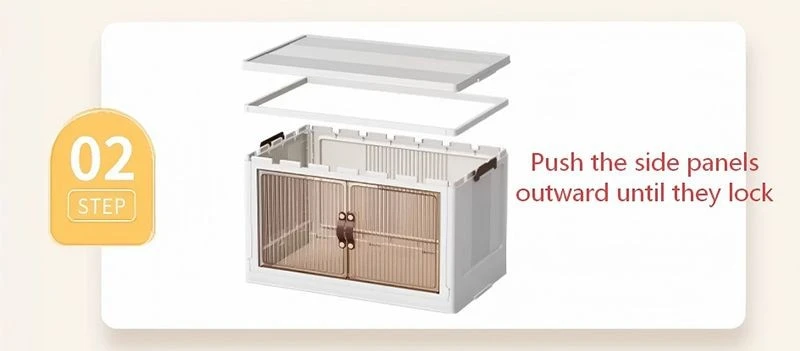

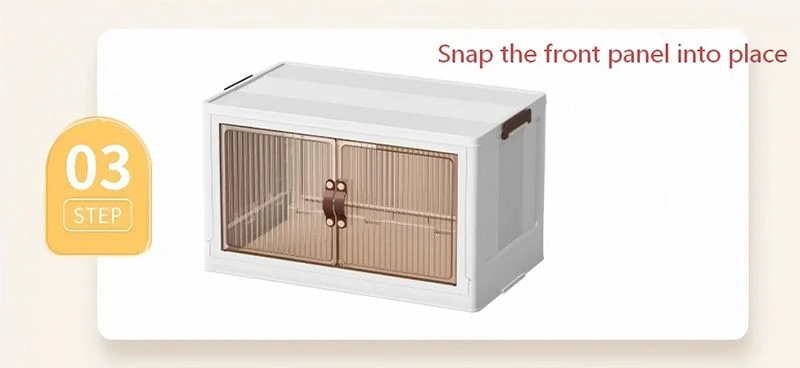

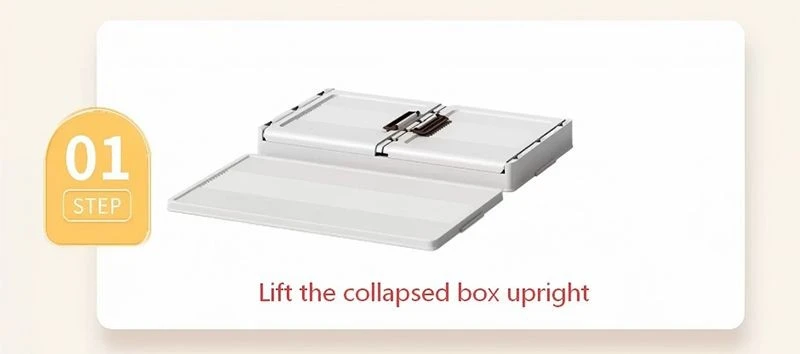

Tolerance-Controlled Folding Mechanism: Integrally molded hinges and positioning snaps maintain consistent assembly tolerance. No wobble or offset after unfolding, and the structure stays tight after repeated folding for uniform batch stability.
Full-Area Reinforced Rib Design: Integrated mesh ribs evenly distribute stress, effectively preventing panel denting and warping caused by heavy load and transit vibration.
Integrated Caster Base: The caster base and bottom frame are injection molded as one piece with no assembly gaps, eliminating common batch defects such as loose casters, height inconsistency and detachment.
Precision Interlocking Stacking Structure: Symmetric snap slots on top and bottom frames deliver accurate alignment and secure restraint. It resists side sliding and tilting, ideal for standardized warehousing and high-density container loading.
Material Configuration & Performance Test Standards
Material Specification of Components
|
Component |
Material |
Functional Characteristics |
|
Main Cabinet Panels |
Virgin PP |
Core load-bearing structure, resistant to repeated folding, impact and chemical corrosion with stable performance |
|
Front Doors |
HIPS |
High forming rigidity, consistent flat surface and low deformation risk |
|
Door Frame |
HIPS |
Support and shaping, ensuring precise door closing fit |
|
Caster Treads |
TPR |
Quiet rolling, floor-friendly for wood and tile surfaces, anti-slip and wear-resistant |
|
Hinges & Snaps |
Virgin PP |
Built for frequent folding and opening cycles with long service life |
Finished Product Performance Tests
- Static Load Test: Continuous uniform load test to verify panel flatness and structural connection stability
- Folding Cycle Test: Repeated folding and opening to validate durability of hinges and snaps
- Latch Operation Test: High-frequency opening and closing to confirm sensitive and reliable locking
- Caster Performance Test: Rolling smoothness and brake stability under loaded condition
- Structural Tension Test: Tensile strength inspection for hinge and connection joints
- Packaging Drop Test: Drop protection test complying with export standards
REACH and RoHS compliance reports can be provided for qualified OEM orders.
Mobility & Modular Storage
Equipped with four 360° swivel casters, the cabinet can be moved effortlessly even when fully loaded. Front casters feature physical locking brakes to secure position and prevent sliding.
Vertical modular stacking is supported, with a safe stacking limit of 4 layers. It adapts to varied height requirements for residential, commercial and warehouse storage.
Application Scenarios & Target Markets
Suitable for home indoor storage, e-commerce warehouse stocking and wholesale for offline retail channels. It can hold clothing, books, toys, kitchen sundries, stationery and other daily items.
Target buyers: Home storage brand owners, Amazon FBA sellers, regional supermarket chains and household goods wholesalers. Mixed loading with our full range of storage and outdoor furniture products is acceptable to maximize container space utilization.
OEM / ODM Customization Service
|
Custom Item |
Available Options |
|
Color Customization |
Stock colors, custom Pantone colors, frosted translucent, dual-color matching |
|
Logo Customization |
Side / door silk printing, single / dual color, custom size and position |
|
Dimension Customization |
L/W/H adjustment, height / width upgrade, thickened high-load version |
|
Material Customization |
Virgin / mixed PP, 3mm / 3.5mm / 4mm panel, matte / frosted / glossy surface |
|
Structural Customization |
Reinforced ribs, higher load capacity, magnetic door, silent caster, stacking optimization |
|
New Mold Development |
Special shape, new structure, divided interior, exclusive custom design |
|
Packaging Customization |
Custom color box, carton logo printing, FBA barcode, reinforced drop-shipping package |
Custom Development Process
Requirement Confirmation → Technical Feasibility Review → Structural Sampling → Sample Approval → Mass Production → OQC Inspection → Export Shipment
Sampling lead time for structural modification: 15 days
Sampling lead time for new mold development: 20 days
Before mass production for all customized projects, mold ownership, sample acceptance criteria and production change rules will be clearly defined to secure stable order execution.
Factory Capability & Quality Assurance
KANSOLZ products are manufactured by Jinyun County Canshuo Industry and Trade Co., Ltd. Lishui City Canran Trade Co., Ltd. takes full charge of export documentation, trade communication and order delivery.
The factory covers 20,000 ㎡ with 130 employees, 10 automated production lines and 50 professional injection molding machines. Injection molding, assembly, silk printing and internal QC are completed in-house; special surface treatment is sourced externally. Three dedicated QC staff supervise quality throughout the process.


Inspection follows AQL 2.5 international sampling standard
- IQC Incoming Inspection: Verification of raw PP / HIPS, color masterbatch and caster accessories
- IPQC In-process Inspection: Patrol inspection during injection molding and assembly to avoid mass defective goods
- OQC Pre-shipment Inspection: Full functional check and packaging compliance verification before shipment
Complete production records are retained for every batch to guarantee consistent quality for repeat orders.
We support small trial orders, bulk production and priority scheduling during peak seasons. Mixed container loading is available. Delivery can be arranged on FOB Ningbo basis with customer-appointed forwarders.
After-sales policy: All quality claims will be verified against approved samples, batch records and QC reports. If defects are confirmed as manufacturing issues, three solutions are available: spare part replacement, full order replacement or credit deduction on future orders.

FAQ
Q: What is the MOQ for standard and customized items?
A: Standard stock items: 10 pcs; customized orders including color change, structural revision, new mold and custom packaging: 100 pcs. MOQ can be negotiated for long-term partners.
Q: Can we get pre-production samples before mass production?
A: Pre-production samples are available. Sample cost will be fully deducted from the formal bulk order, while international freight for samples is borne by the buyer.
Q: What is the lead time for custom samples?
A: 15 days for structural modification samples; 20 days for new mold samples.
Q: What is mass production lead time?
A: 15 days in off-season, 20 days in peak season.
Q: What branding and customization services are offered?
A: Custom Pantone color, silk-screen logo, structural reinforcement, dimension adjustment, custom color box, outer carton printing and reinforced packaging for cross-border direct shipping.
Q: How many units fit into a 40HQ container?
A: Approx. 2200 pcs under standard export packing.
Q: Is mixed container loading acceptable?
A: Yes. It can be mixed with our other storage series and outdoor furniture series.
Q: Payment terms and Incoterms?
A: T/T: 30% deposit to lock order, 70% balance before shipment. Term: FOB Ningbo. L/C is not accepted in principle.
Q: What information is required for an accurate quotation?
A: Product model, order quantity, custom color, revised dimensions (if applicable), logo artwork, packaging requirements, destination port and trade term.
