Aluminum Roll Top Table

Aluminum Roll Top Table

Aluminum Roll Top Table with a double-layer slatted tabletop and folding frame for outdoor equipment brands, wholesalers, distributors, and private-label programs.
Add To Inquiry
Send Inquiry
Description
Technical Parameters

Aluminum Roll Top Table with a double-layer slatted tabletop and folding frame for outdoor equipment brands, wholesalers, distributors, and private-label programs.
OEM/ODM production is available for table dimensions, aluminum specifications, colors, logo application, carry bags, and packaging.



Technical Specifications



Technical Parameter

Compact Model (60x60)

Standard Model (87x60)

Medium Model (118x60)

Large Model (148x70)

Unfolded Dimensions (L x W x H)

600 x 600 x 450 mm

870 x 600 x 450 mm

1180 x 600 x 450 mm

1480 x 700 x 550 mm

Capacity Rating

1–2 Persons

2–4 Persons

4–6 Persons

6–8 Persons

Net Weight

Approx. 3.9 kg

Approx. 4.8 kg

Approx. 5.8 kg

Approx. 7.2 kg

Max Static Load Capacity

60 kg (Uniform)

70 kg (Uniform)

80 kg (Uniform)

100 kg (Uniform)

Slat Wall Thickness

0.8 mm Reinforced

0.8 mm Reinforced

0.8 mm Reinforced

1.0 mm Heavy Duty

Total Tabletop Thickness

11 mm (Double-layer)

11 mm (Double-layer)

11 mm (Double-layer)

11 mm (Double-layer)

Leg Wall Thickness

1.0 mm Reinforced

1.0 mm Reinforced

1.0 mm Reinforced

1.2 mm Reinforced

Foot Pad Type

Molded Anti-Slip Feet

Molded Anti-Slip Feet

Molded Anti-Slip Feet

Molded Anti-Slip Feet

Included Accessories

Compartmentalized 600D Oxford Carry Bag + Outer Master Carton



Key Product Features & Technical Highlights



Integrated side-locking joints replace elastic cords and keep tabletop slats aligned during use.
6063-T5 aluminum alloy provides corrosion resistance for outdoor and humid environments.

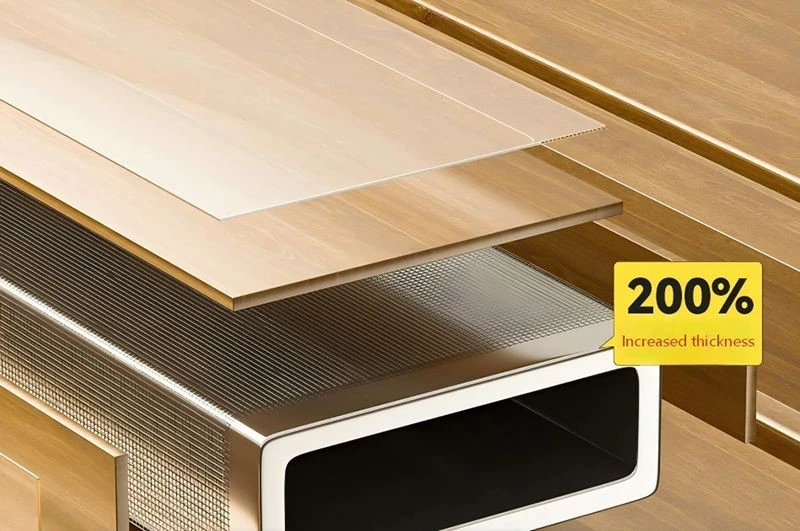

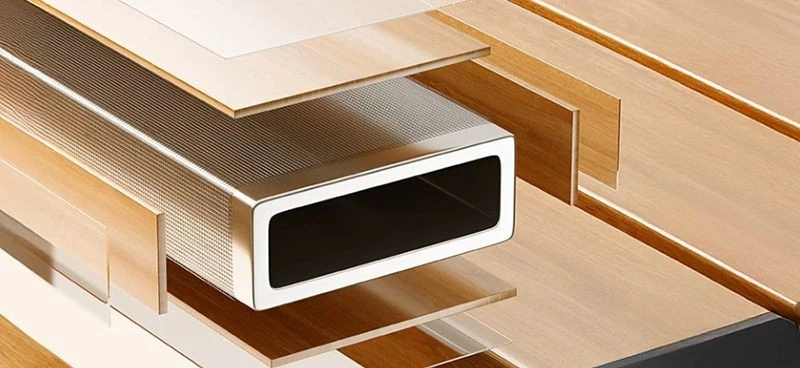

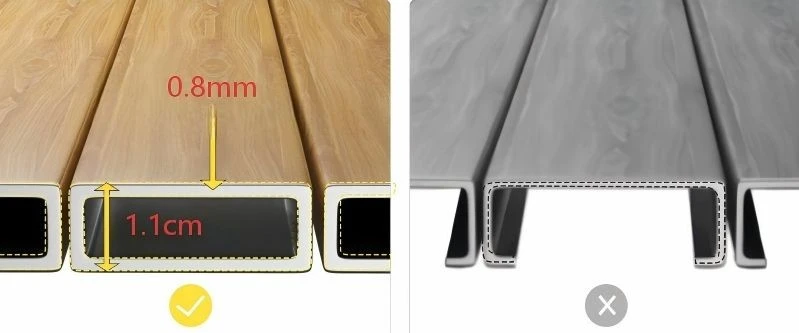

Double-layer hollow slats with 0.8 mm reinforcing ribs increase tabletop rigidity under vertical loads.
Self-aligning guide rails and TPR anti-slip feet support quick assembly without additional tools or loose hardware.
The foldable panel and support frame can be rolled up together and packed into a dedicated storage bag for easy portability.



Configuration & Customization Options (OEM/ODM)



We offer structured OEM/ODM manufacturing services to adapt non-standard product specifications to regional brand positioning and client requirements.
Dimensional & Height Customization
Custom Tabletop Footprint: Length adjustable from 600 mm to 1500 mm; width adjustable from 500 mm to 800 mm.
Custom Height Engineering: Fixed leg heights tailored to client specs (450 mm / 550 mm), or integrated telescopic legs (350–700 mm continuous adjustment range).
Surface Finish Customization
Wood-Grain Thermal Transfer: Custom wood-grain patterns including Oak, Walnut, and Natural Pine.
Anodization Treatments: Customized anodized surfaces including Matte Silver, Charcoal, and Tactical Black.
Specialized Powder Coating: Custom Pantone/RAL color-matched powder coatings with UV-stabilized formulations.
Structural & Hardware Modification
Custom Wall Thickness: Upgradeable leg extrusion tubing wall thickness from standard 1.0 mm to heavy-duty 1.2 mm.
Modular Attachments: Optional under-table tactical mesh storage hammocks and side gear-hanging rail systems.
Branding & Packaging Customization
Product Private Labeling: Custom laser-engraved or screen-printed brand logos on aluminum slats and plastic endcaps.
Carry Bag Customization: Tailored 600D Oxford bags featuring custom woven brand tags and screen-printed graphics.
Custom Retail Packaging: Custom-printed 3-ply inner boxes, branded 5-ply export master cartons, and reinforced Amazon mail-order packaging.





product-500-400
product-500-400
product-500-400
product-500-400




Service Capabilities



Sample Lead Time: 5–7 business days for standard samples and straightforward customization. Structural prototypes generally take approximately 15 days.

Production Lead Times: Mass production generally takes around 15 days during the off-season and 20 days during peak season, depending on order quantity and customization requirements.

Custom Engineering: Our team can review buyer-provided drawings and product specifications for structural modifications, material selection, and packaging development. Structural prototypes and new molds can be arranged when required. New mold development generally takes approximately 20 days, with mold fees applicable.



Packaging Configuration



Inner Packaging: Each unit is wrapped in protective material and packed in a heavy-duty 600D Oxford carry bag with internal component dividers.
Outer Packaging: Standard shipping uses 5-ply corrugated export master cartons built to withstand stacking pressure during long-distance transit.



Logistics & Shipping



Shipping Parameter  Specification / Term
Incoterms Supported FOB Ningbo
Primary Freight Method Ocean Freight (FCL / LCL), other shipping arrangements subject to order confirmation
Individual Unit Packing 1 Unit / Carry Bag / Inner Carton (Optional)
Master Packaging Multi-unit export cartons with internal protective materials where required
Customs Clearance Support Commercial Invoice and Packing List; other export documents can be confirmed according to the shipment requirements
Payment Terms

30% T/T deposit, 70% balance before shipment departure





Container Loading Logistics



Why Choose Us



Corporate Experience: The company has been established for 8 years, with a core team bringing 15 years of industry experience.

Manufacturing Capacity: 20,000 m² manufacturing facilities, 130 employees, and 10 production lines supporting OEM/ODM orders.

Production Facilities: Five workshops covering injection molding, woodworking, metalworking, foaming, and sewing, with in-house cutting, sewing, woodworking, injection molding, powder coating, printing, assembly, and quality inspection.

Quality Assurance: Incoming material inspection, in-process quality checks, and finished-product sampling, with AQL 2.5 inspection available where applicable.



Aerial view of the factory site




FAQ



Q: Are technical drawings and product data sheets provided before placing an order?

A: Buyers can provide 2D or 3D drawings and product specifications for review. We can evaluate dimensions, materials, structure, and production feasibility before sample development. Available technical documentation can be confirmed according to the product and project requirements.

Q: To which global markets and regions do you ship?

A: Our existing export markets include Japan, South Korea, Russia, and Southeast Asia. Shipping arrangements and export documentation can be discussed according to the destination market and order requirements.

Q: What is the typical lead time for bulk orders?

A: Mass production generally takes around 15 days during the off-season and 20 days during peak season.

Q: Can I order samples first for quality evaluation?

A: Yes. We can provide evaluation samples before bulk production. Standard samples generally take 5–7 business days. Structural prototypes may take approximately 15 days.
